Load Bank Testing & Load Bank Rental in Malaysia
Express Mission supports load bank testing and load bank rental requirements for generators and suitable power systems in Malaysia. The test scope is planned around the equipment, objective, required load profile, connection, duration, site conditions and reporting needs.
Load Bank Testing Explained
What is load bank testing?

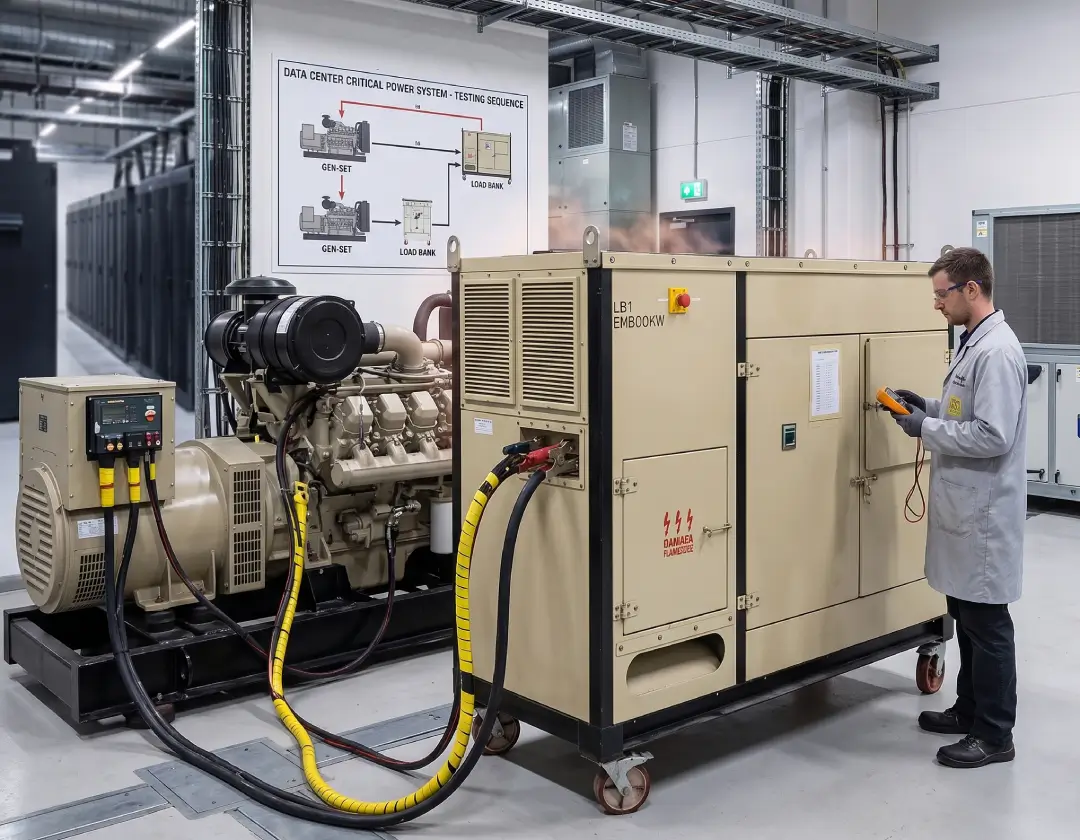

Load bank testing applies a controlled electrical load to a generator or power source so its operation can be observed under defined conditions. A load bank test can help check whether a generator carries the planned test load and whether key operating readings remain within the project’s acceptance criteria.
The test does not guarantee future performance under every real-world condition. Its value depends on an appropriate method, suitable connections, calibrated or accepted instruments, competent supervision, clear acceptance criteria and accurate reporting.
Common Applications
When is a load bank test used?
Generator commissioning
Planned maintenance
A genset load test can help assess operation after maintenance or during a planned readiness programme. Test results should be considered together with service history, inspection findings and any reported issues.
Standby power readiness
A standby generator may run with little or no building load during routine checks. A controlled load bank can provide a defined test condition when the project requires more than a no-load run.
Troubleshooting and performance checks
Where performance concerns exist, a load test may help reproduce or observe behaviour under controlled conditions. The test plan should be developed around the reported symptom and equipment condition.
Rental generator preparation or project support
Load bank testing may be used for suitable rental or temporary power projects where the generator and distribution arrangement must be checked before operational loads are connected.
Equipment Rental
Types of load bank and test load
Load banks are commonly described by the type of electrical load they apply. The appropriate equipment depends on the generator, system and test objective.
Resistive load
A resistive load primarily applies real power in kW. It is often relevant when the objective is to observe the generator under a controlled real-power demand.
Reactive load
A reactive load introduces a power-factor component that may better represent certain AC system conditions. Whether reactive testing is required depends on the equipment and project specification.
Combined testing
Some test requirements may call for a combination of resistive and reactive load. Express Mission should confirm the available load bank configuration and suitability for the requested test before quotation.
Load Types

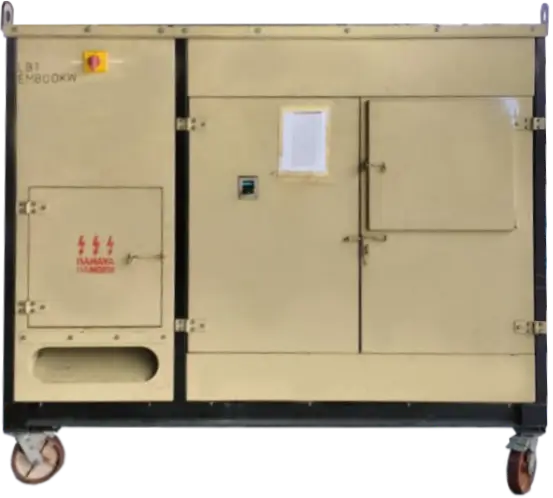

Load bank rental Malaysia
A load bank rental can support customers that have their own competent technical team and defined test method, or it may form part of a wider testing service. Equipment-only rental and a managed load bank test are different scopes.
A load bank rental enquiry should state:
- Generator or power-system rating.
- Voltage, frequency, phase and connection details.
- Required kW, kVA and power factor where applicable.
- Proposed load steps and duration.
- Cable distance and connection arrangement.
- Site access, placement and ventilation conditions.
- Test method, supervision and reporting responsibilities.
- Required test date and project programme.
Testing Process
Our load bank testing process
Test Records & Reporting
Information commonly recorded during testing
The exact readings depend on the equipment and test specification. A report may record:
- Date, site and equipment identification.
- Generator and load bank ratings.
- Test stages, duration and applied load.
- Voltage, current, frequency and power readings.
- Engine or equipment readings available from the generator controls.
- Alarms, observations and interruptions.
- Acceptance criteria supplied for the project.
The customer or responsible consultant should confirm which readings and report format are required before testing begins.
Blogs
Load bank testing and temporary power services
Express Mission supplies load banks as part of its supporting power equipment and can coordinate related requirements through genset rental Malaysia and temporary power distribution.
Other project services include commercial solar EPCC and HDD works.
FAQs
Load Bank Testing FAQ
How long does a load bank test take?
Test duration depends on the objective, generator rating, load stages, hold times, setup and project specification. Provide the required method or acceptance criteria when requesting a quotation.
Is load bank testing the same as running a generator without load?
No. A no-load run checks basic operation without a meaningful connected demand. A load bank applies a controlled electrical load according to the test plan.
Can I rent a load bank without a testing service?
Equipment-only rental can be discussed, but availability, compatibility, connections, competent supervision, operating responsibilities and the test method must be confirmed.
What generator information should I provide?
Provide the nameplate rating, voltage, frequency, phase, connection details, service history, test objective and available single-line diagram or technical documents.
Does passing a load bank test guarantee the generator will never fail?
No. A test records performance under defined conditions at a particular time. Future reliability also depends on maintenance, fuel, environment, load behaviour, installation and equipment condition.
Can load bank testing be completed at our site?
Site testing can be assessed based on access, placement, connections, cable routing, ventilation, work controls and equipment availability. Share site details during the enquiry.
Get a Quote
Define your load bank testing requirement
Send the generator rating, voltage, test objective, required load profile, duration, site conditions, connection information and reporting needs. Express Mission can review the scope and confirm what is required for quotation.
