HDD Works in Malaysia

Express Mission supports suitable HDD works for underground utility and infrastructure projects in Malaysia. Horizontal directional drilling can be considered where a planned underground route may reduce the need for continuous open trenching, subject to site, ground, route and project assessment.

Discuss an HDD Project
View Related Services

HDD Explained

What is horizontal directional drilling?

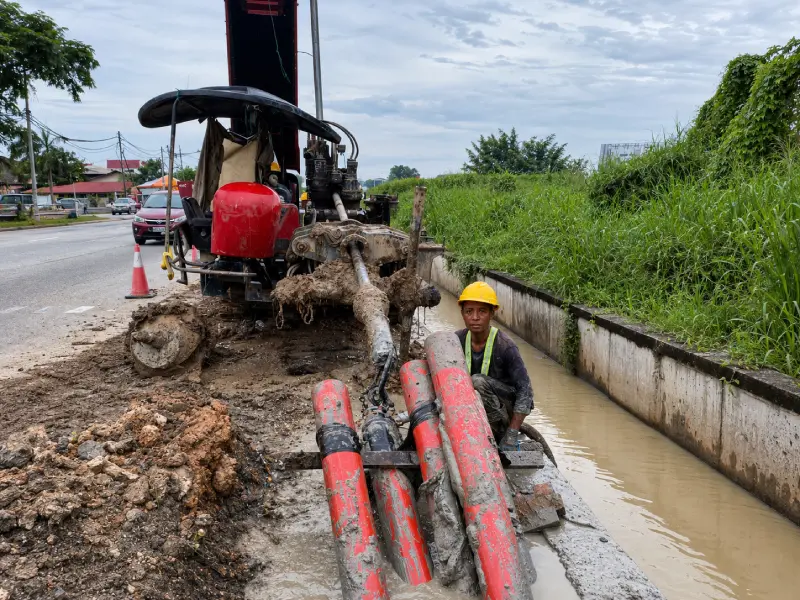

Horizontal directional drilling, commonly called HDD, is a trenchless installation method used to create a planned underground path for suitable pipes, conduits or cables. A typical HDD scope involves route planning, a pilot bore, bore enlargement where required and installation of the intended product along the prepared path.

HDD is not automatically suitable for every site. Ground conditions, route length and depth, existing utilities, access, product requirements and project controls must be reviewed before a method is selected.

Utility Applications

HDD works for underground utility projects

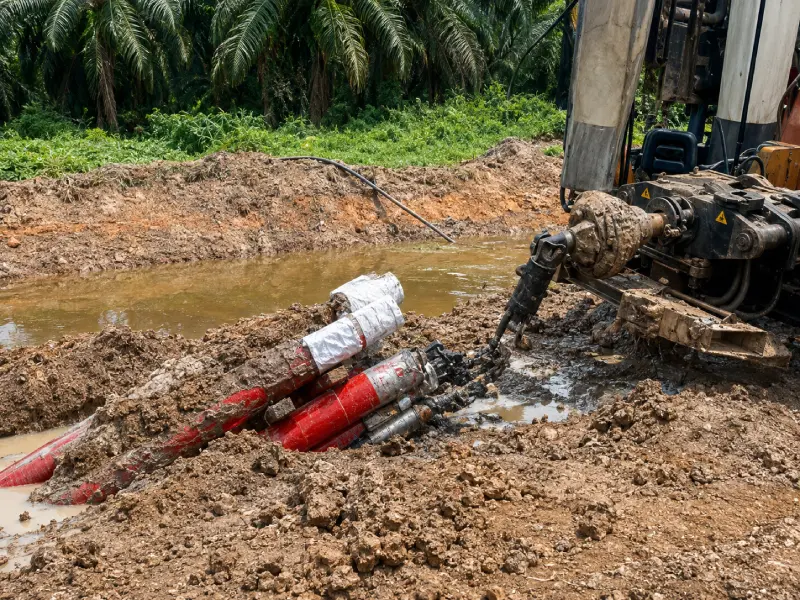

HDD works may be considered for utility and infrastructure routes where reducing continuous surface excavation is important. Depending on the confirmed scope, this may relate to underground cable installation, conduit routes or other suitable utility crossings.

A project review should identify:

  • Entry and exit locations.
  • Proposed route, length and depth.
  • Product type, size and installation requirements.
  • Available ground and utility information.
  • Existing services and required detection or verification.
  • Access for equipment, materials and support activities.
  • Traffic, property and stakeholder constraints.
  • Required approvals, method statements and project documentation.

Cable & Conduit Installation

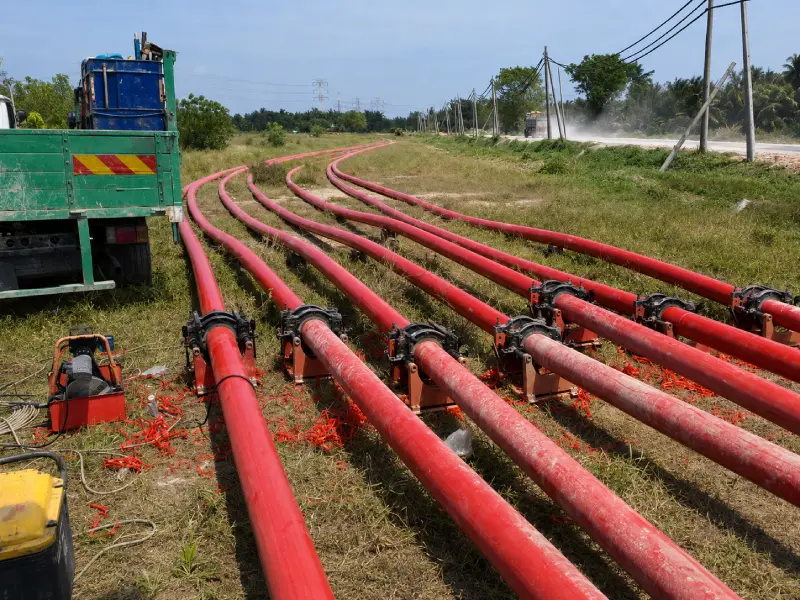

Underground cable installation Malaysia support

For an underground cable installation Malaysia project, HDD may provide a route for a suitable conduit or cable arrangement without opening the full alignment from end to end. The final method depends on the cable system, route, bend requirements, pulling considerations, ground conditions and approved design.

HDD work should be coordinated with the broader electrical or utility scope. The drilling route alone does not replace cable design, protection, jointing, testing, authority requirements or other installation responsibilities unless these are expressly included in the agreed project scope.

Method Comparison

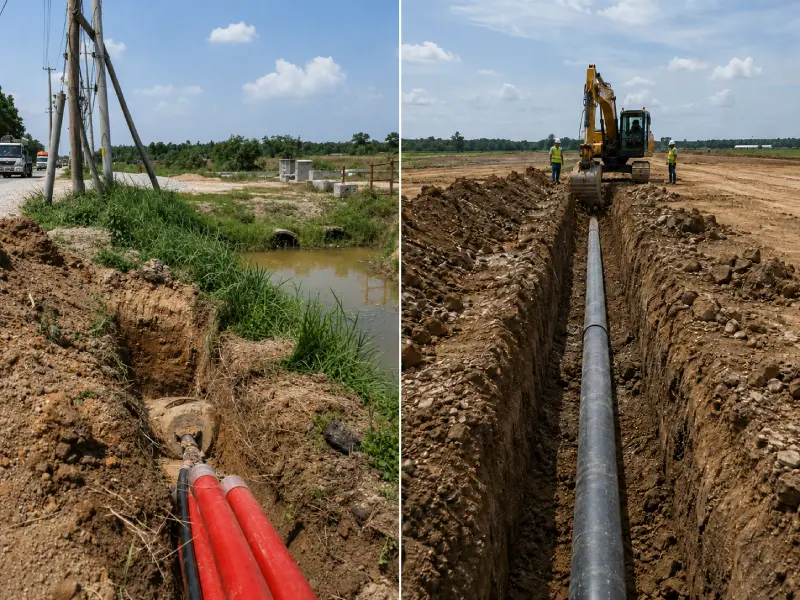

HDD vs open cut: which method suits the project?

The choice between HDD vs open cut should be based on site and project evidence, not a general claim that one method is always better.

Horizontal directional drilling may be considered when:

  • A road, access route or sensitive surface area must be crossed.
  • Continuous trenching would create significant surface disruption.
  • Entry and exit work areas can be established.
  • Ground and route conditions are suitable for the proposed bore.
  • The product and route can meet installation and bend requirements.

Open cut may be considered when:

  • The route is accessible for excavation.
  • Direct visual control of the installation is important.
  • Ground conditions or obstructions make the proposed bore unsuitable.
  • A shallow, straightforward route is more practical within the project constraints.
  • The project requires direct access along the full alignment.

Some projects may use a combination of methods. A technical review should determine the appropriate approach for each section.

Project Delivery

Our HDD project approach

Step 1
Route & Requirements
Requirement and route review

Share the project location, intended product, preliminary route, dimensions, target depth and available drawings or survey information.

Step 2
Site Constraints
Site and constraint assessment

The project team reviews access, entry and exit areas, known utilities, ground information, traffic or property constraints and documentation requirements.

Step 3
Method & Scope
Method and scope development

The proposed method should define the basis of the work, equipment and support scope, interfaces, responsibilities, exclusions and information still required.

Step 4
Project Coordination
Project coordination

Before mobilisation, relevant access, permits, utility coordination, work sequencing, safety controls and stakeholder requirements should be addressed according to the project scope.

Step 5
HDD Execution
HDD execution

Execution follows the approved method and project controls. Actual conditions encountered may require reassessment or changes to the planned approach.

Step 6
Completion & Handover
Completion and handover

Completion records, testing responsibilities and reinstatement scope should be managed according to the agreed deliverables.

Answer-First Section

Horizontal directional drilling machine on rent

Searches for a horizontal directional drilling machine on rent may refer to equipment-only hire or to a managed HDD works package. These are not the same service.

Express Mission should first review the requested machine capability, product and route requirements, operator needs, support equipment, mobilisation, ground information and customer responsibilities. Equipment availability and whether an equipment-only arrangement or managed work scope can be offered must be confirmed for the specific enquiry.

Ask About HDD Equipment or Works

Cable & Conduit Installation

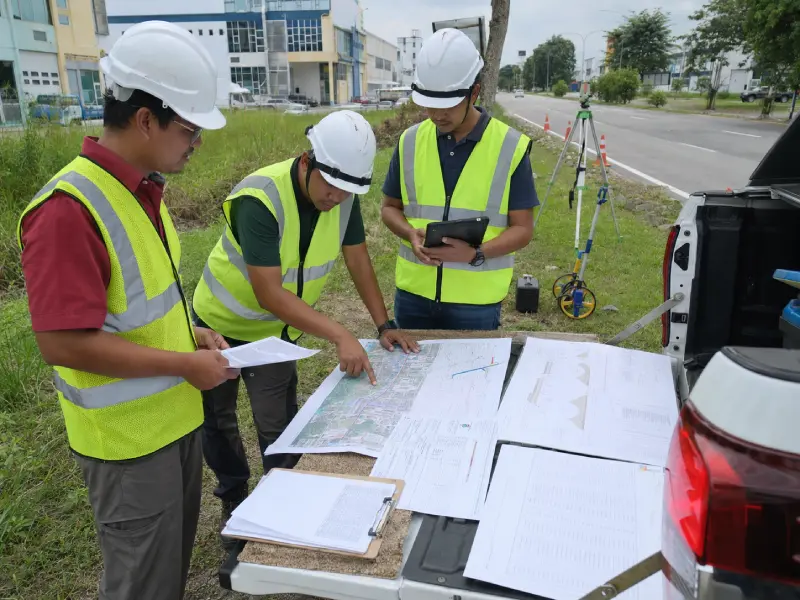

Information to prepare for an HDD quotation

To help an HDD contractor Malaysia assess a project, prepare as much of the following as possible:

01
Project and site location.
02
Route drawing or marked-up plan.
03
Intended pipe, conduit or cable details.
04
Proposed length, depth and diameter.
05
Entry and exit area dimensions.
06
Known utility records and survey information.
07
Available ground or geotechnical information.
08
Access, traffic and working-hour restrictions.
09
Required completion date and programme.
10
Required documentation, approvals and handover records.

Missing information does not always prevent an initial discussion, but it may limit the accuracy of the proposed method and quotation.

Blogs

Related Express Mission services

A utility or infrastructure project may also need temporary equipment or energy support. Explore genset rental Malaysia, temporary power distribution and commercial solar EPCC.

FAQs

HDD Works FAQ

HDD creates a planned underground path from defined work areas, while open cut excavates along the route. The right method depends on ground conditions, utilities, access, product requirements, surface constraints, cost, programme and project risk.

HDD can be considered for suitable underground cable or conduit routes. The design must account for route geometry, cable or conduit requirements, pulling considerations, existing utilities, ground conditions and the approved electrical scope.

Projects generally require an approved route and scope, available utility and ground information, access arrangements, project controls and applicable permits or approvals. Exact requirements depend on the site and contracting scope.

Express Mission can review enquiries for HDD equipment or a managed works scope. Equipment capability, availability, operator and support needs, mobilisation and customer responsibilities must be confirmed before an arrangement is offered.

HDD may reduce continuous surface excavation, but it still requires work areas and project controls. It is not automatically the best method for every route, and suitability must be assessed.

Send the site location, route plan, product details, approximate length and depth, entry and exit constraints, utility records, ground information and required programme. Express Mission can identify what further information is needed for review.

Get a Quote

Discuss your HDD route and project requirements

Share your route drawing, installation details, approximate length and depth, site constraints and programme. Express Mission can review whether an HDD works scope should be developed for the project.
